OpenDSC

OpenDSC is an open-source configuration management platform built on Microsoft's Desired State Configuration (DSC) v3. It extends the DSC ecosystem with built-in resources for managing Windows, SQL Server, and cross-platform systems, a Local Configuration Manager (LCM) service for continuous monitoring and remediation, and a Pull Server for centralized configuration delivery.

With OpenDSC, you can:

  • Manage Windows systems using built-in resources for environment variables, services, scheduled tasks, local users and groups, optional features, shortcuts, and file system ACLs.
  • Manage SQL Server with resources for logins, databases, roles, permissions, linked servers, and Agent jobs.
  • Manage cross-platform systems with resources for files, directories, symbolic links, XML elements, JSON values, ZIP archives, and POSIX permissions.
  • Monitor configuration drift with the LCM service, which periodically checks whether systems match their desired state.
  • Remediate drift automatically by running the LCM in Remediate mode, so systems self-correct when they deviate from their declared configuration.
  • Centralize configuration delivery with the Pull Server, which stores versioned configurations, merges parameters across scopes, and delivers configurations to managed nodes over HTTPS.

Components

OpenDSC has three main components:

DSC Resources

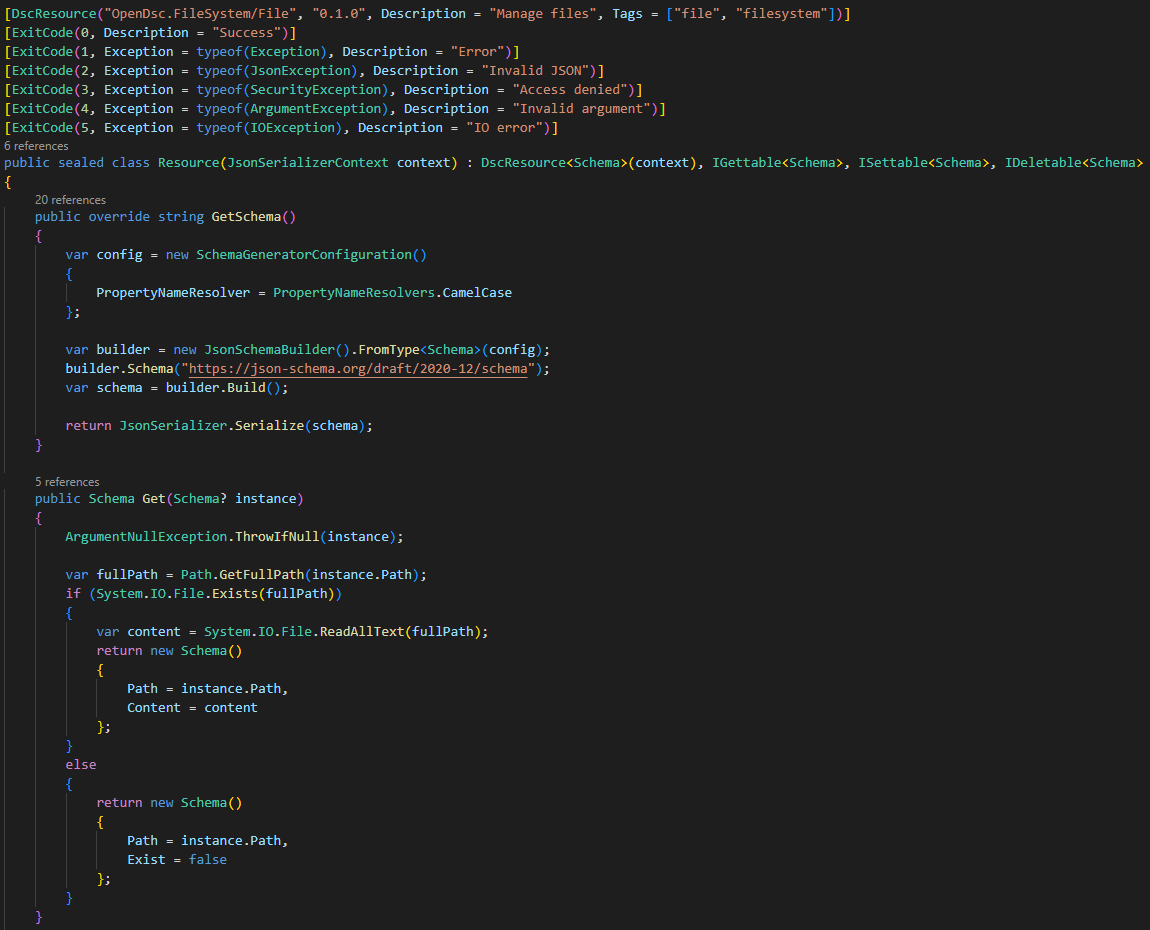

OpenDSC ships a set of built-in DSC Resources packaged into a single executable. The resources work with the standard DSC v3 CLI and follow the same patterns as any other DSC command resource. You can use them individually with dsc resource get, dsc resource set, and dsc resource delete, or compose them into configuration documents.

For a full list of available resources, see resource.

Local Configuration Manager (LCM)

The LCM is a background service that continuously applies a DSC configuration document. It operates in two modes:

  • Monitor — periodically runs dsc config test and reports whether the system is in the desired state without making changes.
  • Remediate — periodically runs dsc config test and, when drift is detected, runs dsc config set to bring the system back into compliance.

The LCM can pull its configuration from a local file or from the Pull Server. For more information, see LCM.

Pull Server

The Pull Server is an ASP.NET Core application that combines a REST API with a Blazor web UI. It provides:

  • Node registration with mutual TLS (mTLS) certificate-based authentication.

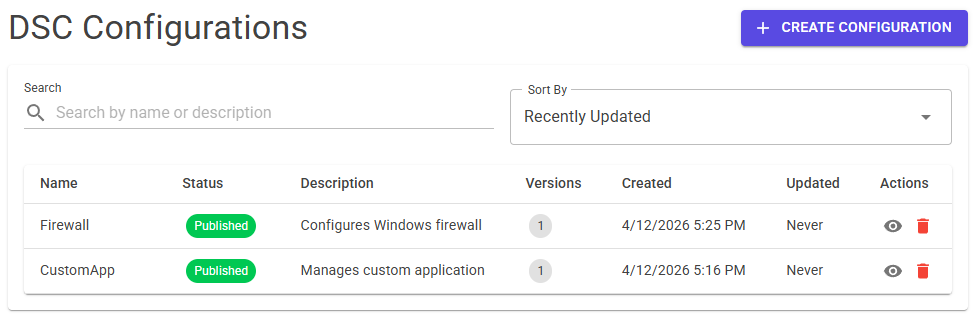

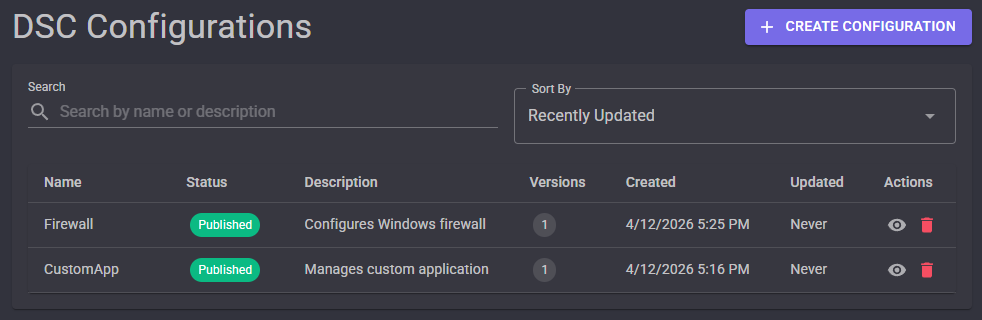

  • Versioned configuration storage with semantic versioning and draft/publish lifecycle.

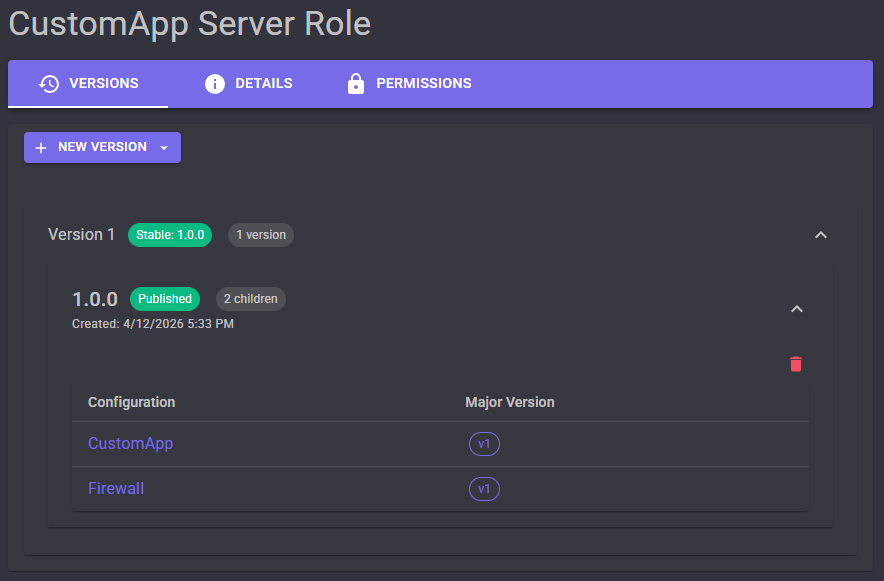

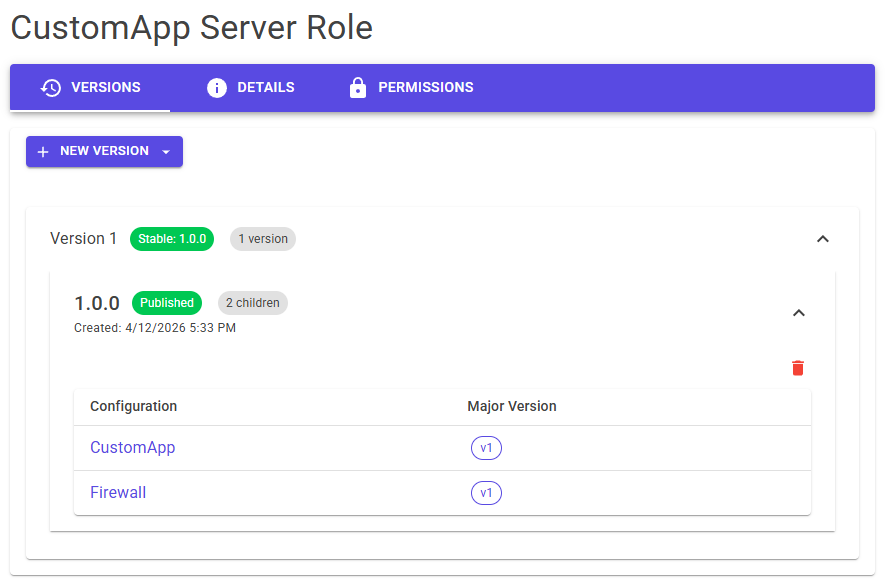

  • Composite configurations that combine multiple configuration documents into a single deployment unit.

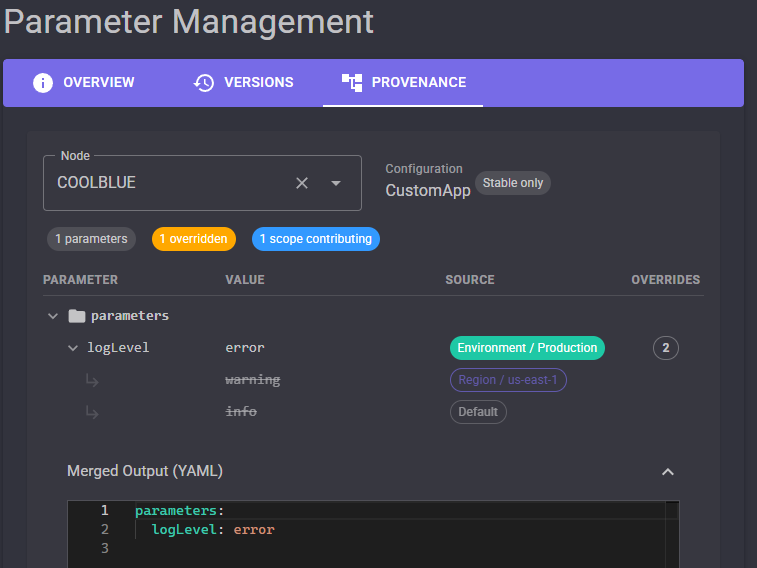

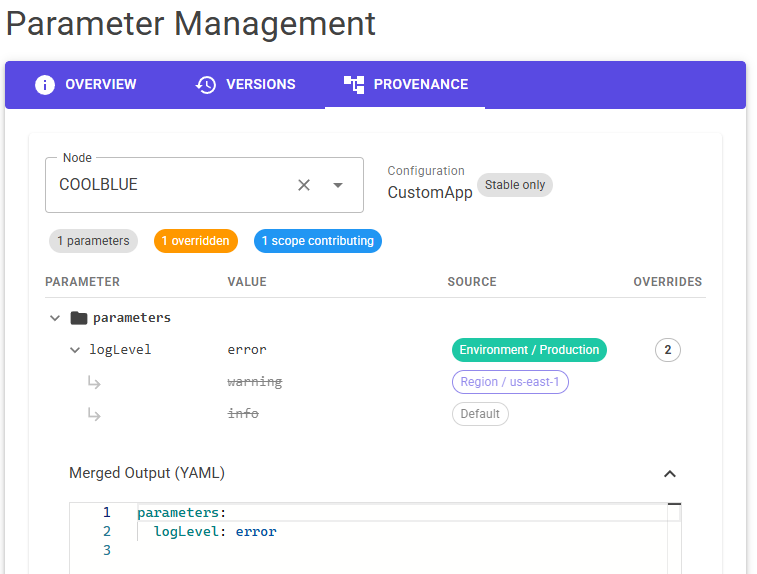

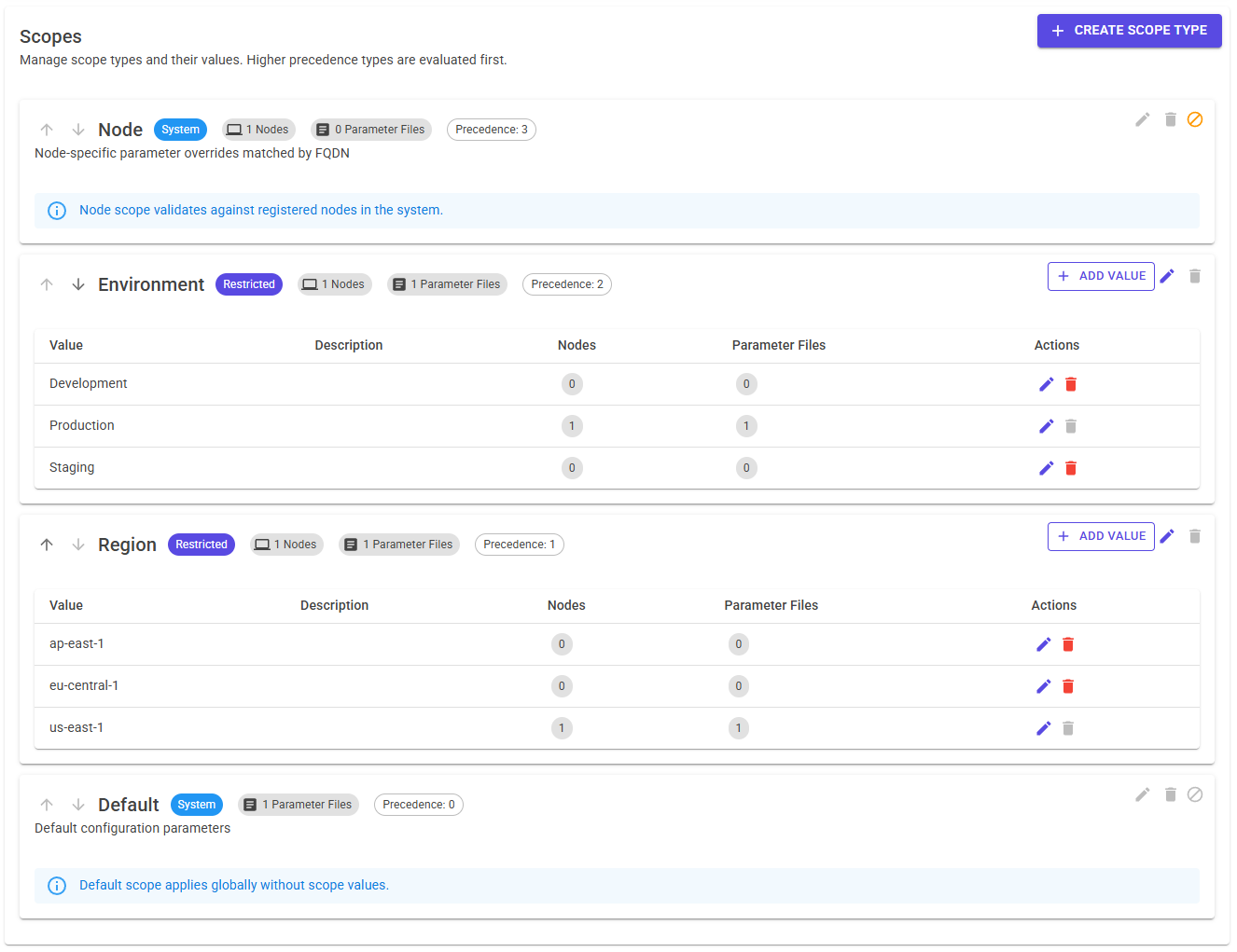

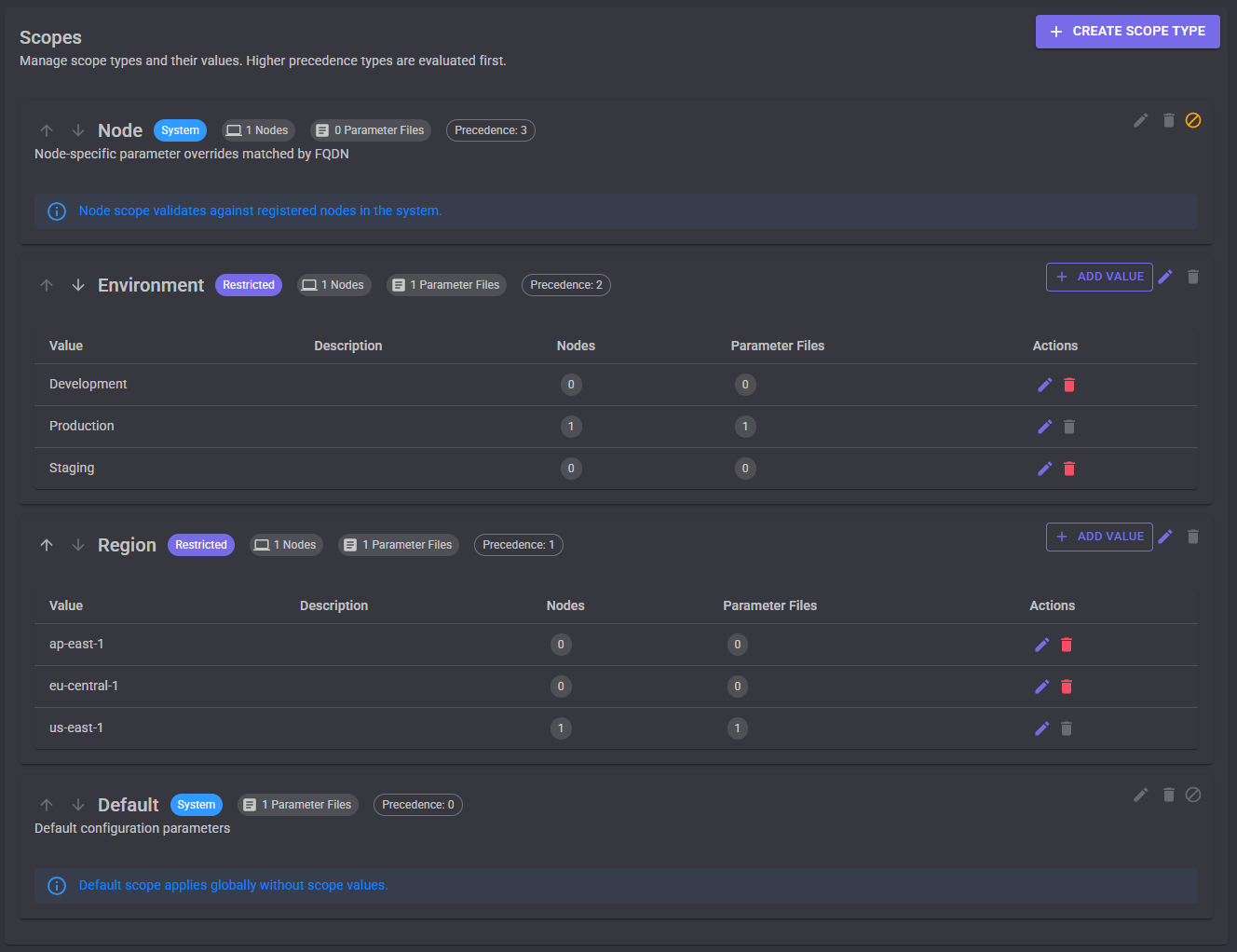

  • Hierarchical parameter merging across scope types (Default → Region → Environment → Node).

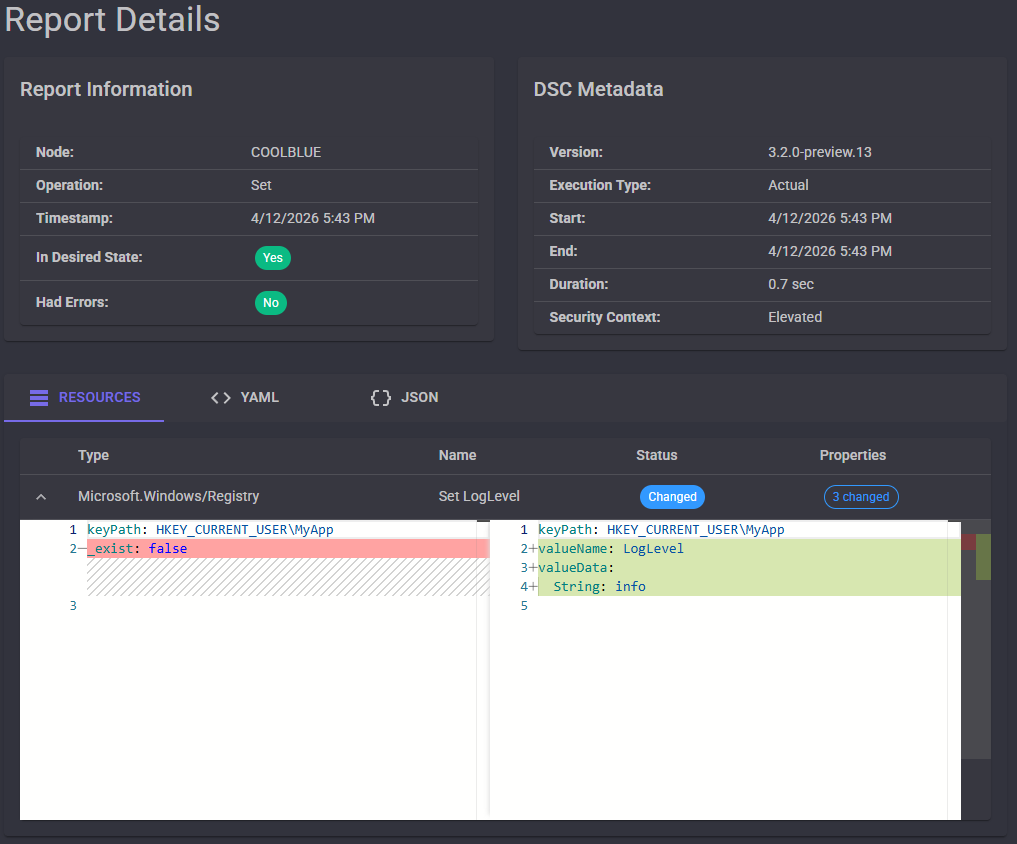

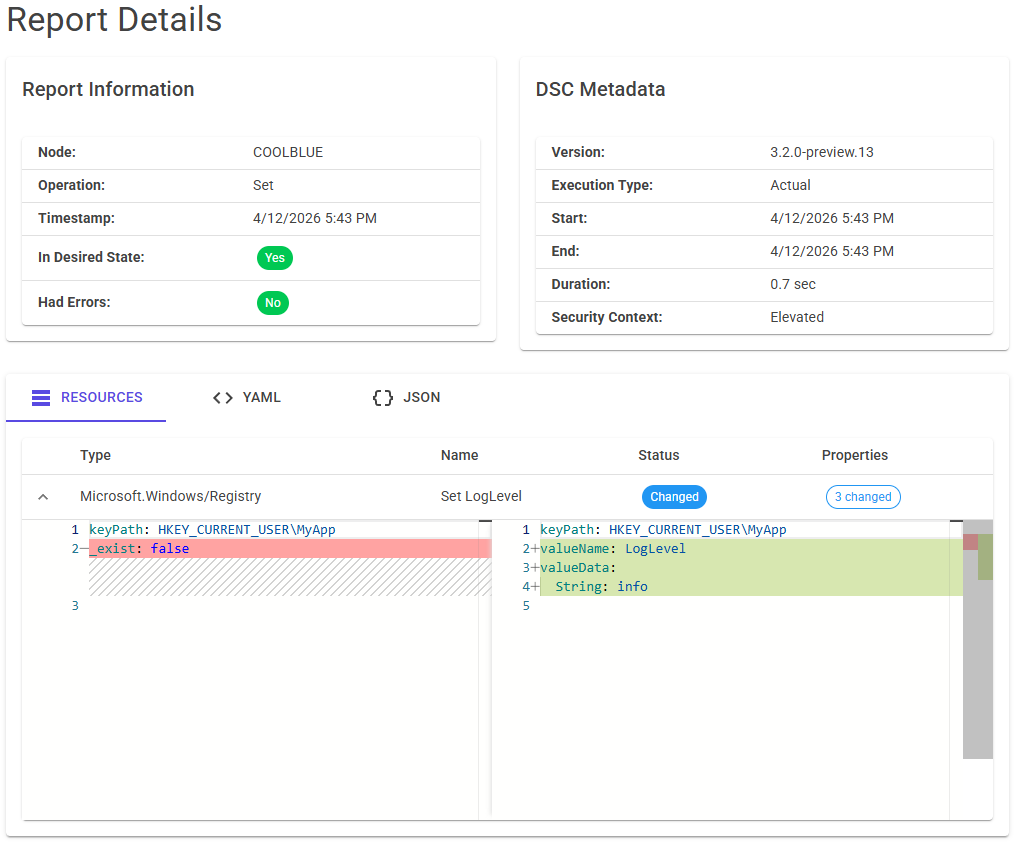

  • Compliance reporting with drift detection and historical tracking.
  • Role-based access control (RBAC) with users, groups, and fine-grained authorization policies.

For more information, see Pull Server.

How OpenDSC relates to Microsoft DSC

OpenDSC is built on top of Microsoft's DSC v3 platform. It uses the dsc CLI as its engine and follows the same configuration document format, resource manifest conventions, and operational model. OpenDSC doesn't replace or fork DSC — it extends the ecosystem with additional resources and management infrastructure.

If you're familiar with DSC v3, you already know how to use OpenDSC resources. They appear alongside built-in DSC resources in dsc resource list and work identically with dsc config commands.
